Anderson Promoter (medium)

BBa_J23111

This part belongs to:

Type:

Constitutive Promoters

Function:

Hardwire

Publication:

RegistryofStandardBiologicalParts2021

Data

Parameter Value Unit
Strength 0.58 RPU
Strain TG1
Plasmid BBa_J61002
ori p15A
Resistance Amp

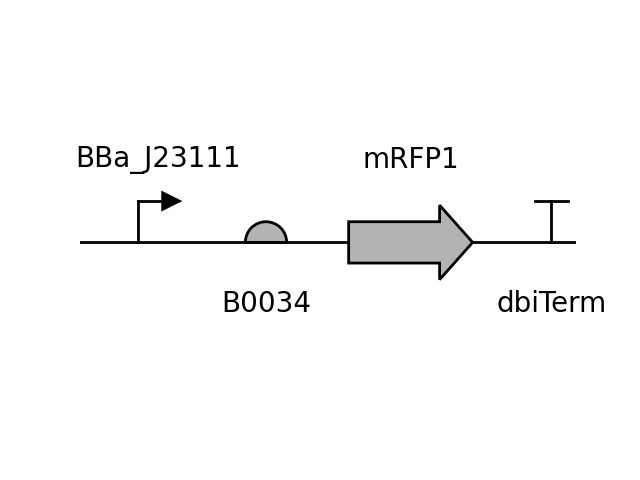

Circuit Context

(better resolution)

Description

Part of the widely-used Anderson promoters collection, characterized by Prof. Christopher Anderson and the 2006 Berkley iGEM team, which derived 20 promoters from mutating BBaJ23119. The data used here was taken directly from the iGEM repository, although it lacks in detail when disclosing measurement/culture conditions.

These promoters lead to constitutive σ70-assocciated gene expression.

Characterization

The Registry web page only states the host cells (E. coli TG1) was grown on LB media to saturation. All measurements were normilized by the activity of BBa_J23100.

Sequences

Promoter

ttgacggctagctcagtcctaggtatagtgctagc

Download

FASTA

Reference

Registry of Standard Biological Parts

http://parts.igem.org/Promoters/Catalog/Anderson
